Description

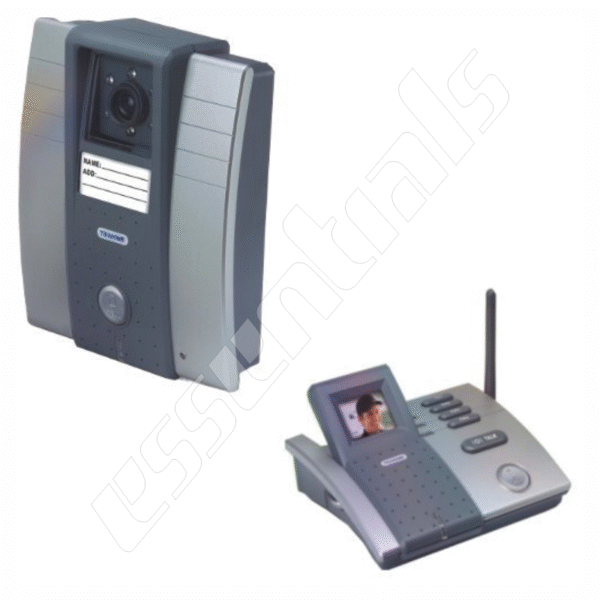

See and converse with visitors at the door before you open it.
Clear two-way audio communication.
The doorphone monitor comes complete with a 1.8-inch TFT LCD monitor and door release button which can be used to operate an electric door latch.
Weather resistant doorphone camera has a built-in camera, call button and 6 infrared LEDs.
Infrared illumination helps identify visitors even at dusk.
Encrypted ID code to ensure privacy.
High integration of 2.4GHz to eliminate interference.
Wireless technology brings easy time-saving installation.
Technical Specifications
System
Radio Frequency – 2.4GHz, Direct Sequence Spread Spectrum
Working Distance – Typical 100m line of sight
Audio Type – Two-way communication
Security Method – ID code encryption
Multiple Cameras – Maximum 4 cameras
Power Saving Mode – System auto-sleep
Doorphone Camera
Camera Type – CMOS sensor, resolution: 300K pixels
Night Vision –IR LED Illumination
Radio Type – 2.4GHz transceiver
Antenna Type – Built-in microphone and speaker
Doorbell Operation – Bell button to trigger indoor unit linkage
Electric Lock – Lock open ability for 12V/600mA electric door latch
Form factor – IP43 level water resistance with wall-mount case
Power consumption – DC 12V/1.2A from AC adapter
Doorphone Monitor
Display Type – 1.8” TFT LCD with adjustable brightness
Radio Type – 2.4GHz transceiver
Antenna Type – Adjustable dipole antenna
Audio Type – Built-in-microphone and speaker with adjustable volume
Channel Selection – 4 LED indicators for maximum 4 cameras
Doorbell Operation – Talk button to trigger outdoor unit linkage
Openlock Operation – Open button to release an electric door latch
Power Consumption – DC 5V600mA from AC adapter
Battery Operation – Built-in 4 AA battery compartment
