Walk Through Metal Detector-2400 ISMD009

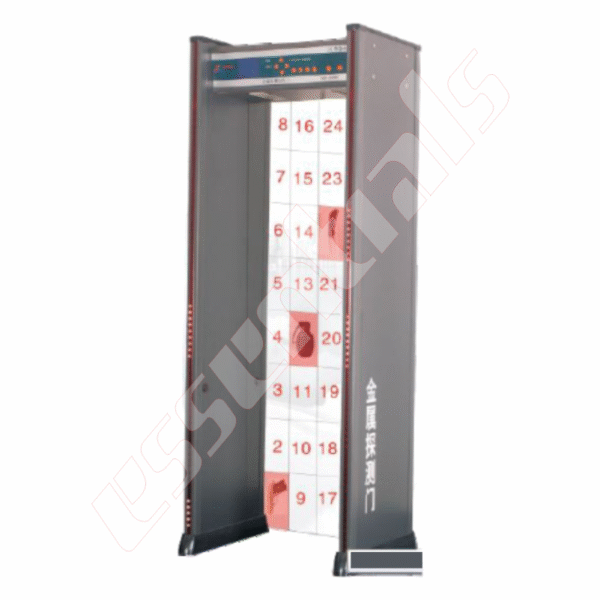

o Multizones Detection: 24 zones shows precise target locations on the left, center and right side of the body from head to toe.
o DSP and Microprocessor Controlled
o Self calibration once power on
o One-key restoration of factory setting
o Optional built in back-up battery

SKU: ISMD009 Category: Tag:

1. The whole product is consisted of two parts; Left-right detecting gate + Mainframe. The mainframe is using a very friendly design e.g. water-proof and anti-visual blind designs.
2. There are 8 detecting areas spreading evenly over the left, middle and right detecting gate boars respectively
3. Independent detecting in left, middle and right regions. The LED indicating lights in left, middle and right regions will display independently: the maximum sensitivity will detect 1-yuan coin; for example when it detect a metal in the left region, the left –side LED indicating light will turn on; when it detects a metal in the right region, the right-side LED indicating light will turn on; when it detect in the middle position, both left and right LED indicating lights will turn on at the same time
4. Information will be marked down on the super-large LCD front panel e.g. number of persons passed-by, times of alarm strength of interfering signals, remote-controlled receiver etc.
5. The control circuit, collecting circuit and calculation circuit are highly integrated which are especially stable in performance, strong in anti-interference, exact in detecting and free from mistake in reporting.
6. The special remote controller is prepared to adjust all functions, power on or off the device easily
7. When a connecting with power, the device will automatically turn on, diagnose and adjust
8. Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity; it can meet the customer’s demand to reject the items e.g. belt buckle, gold or silver jewelry etc.
9. Has the function of password protection to prevent any hostile change of parameters by any unauthorized person
10. Has the function of Recovery systematic parameters by one-key, when you make some mis-operations, you may recover all ex-work settings just by one key.
11. Has the function of 3-grade audio tones adjustment, adapting to different usage environment.
12. Eight work frequency spots are set up in an array; standard distance to assemble the gate is 50 CM.
13. The product does no harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc etc.

Technical Specifications

Passage dimension: 2,000 x 720 x 280mm
External dimension: 2,300 x 970 x 345mm
Working power: AC 110 to 220V, 30W
Working temperatures: -20 to 55oC
