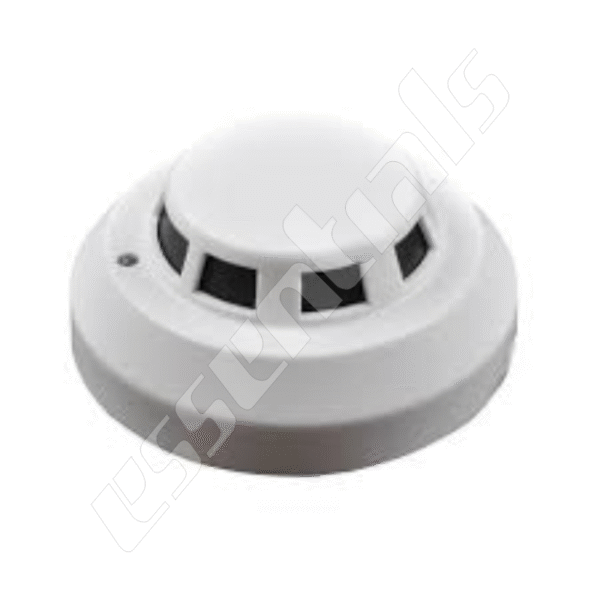

Smoke Detector with Hidden Video Camera FSSD018



SKU: FSSD018 Category: Tag:

Color camera with SHARP 1/3″ CCD sensor in smoke detector hidden case.
Employs Digital Signal Processor (DSP) chip-set for image control.
Pixel number: NTSC=380K / PAL= 440K
High sensitivity, low smear, high anti-blooming, and high SIN ratio .
Build-in function: Auto Electronic Shutter (AES) Auto Gain Control (AGC), Auto-White-Balance (AWB].
Furnished with DC power cable and video cable.
Built-in anti-aliasing and IR-cut optical filter.

Technical Specifications

Model Type – X0621
Image Pick-up Device – SHARP 1/3″ CCD High Resolution
Effective Picture Elements – NTSC: 768*494, PAL: 752*582 (H*V)
Horizontal Resolution – 470 TV lines
Minimum Illumination – 0.2 LUX @ F2.0
SIN Ratio – More than 48 dB
Auto Electronic Shutter – NTSC: 1/60s-11100,000s, PAL: 1/50s-11110,000s
Gamma Characteristic – 0.45
Lens Furnished – Pinhole lens 3.7mm / F2.0
Gain Control – Automatically
White Balance – Automatically (2500K-9500K)
Synchronous System – Negative sync. Internal
Video Output – 1 Vp-p Composite Video / 75 Ohms.
Power Supply. – DC 12V / 100 mA
Operating Temp. – -icr: to 500e (14°F to 122°F)
Dimensions – 130 rnm(ct» X 58 rnm(H)
Audio Output (Option) – 2 Vp-p / 50 Ohms. RCA connector.
