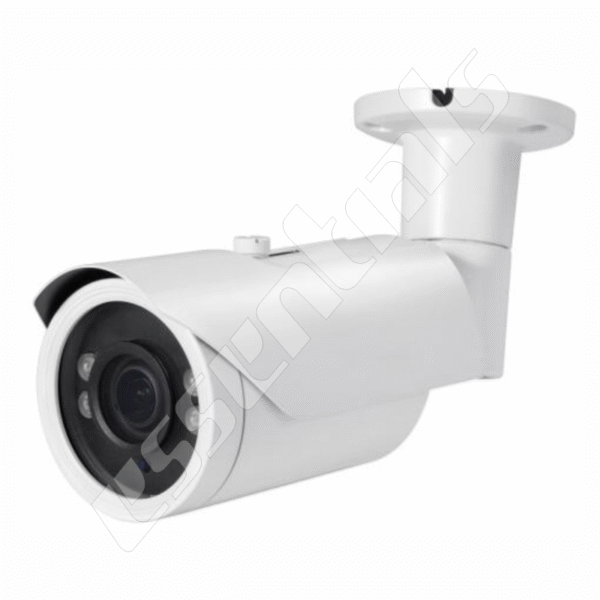

2.0MP AHD CCTV Bullet Camera, 3.6mm (FHD 320JZ-2-ICR)


SKU: AHD 320JZ-2-ICR Category: Tag:

* Adopt 1/2.8” 2.0 Megapixels CMOS Sensor
* 1920×1080 High Definition Image
* Control OSD Menu via Coaxial Cable
* Over 500 Meters Coaxial Cable Transmission
* Hybrid AHD/TVI/CVI/CVBS Signal output
* Support 2DNR
* Support Smart IR Function

Technical Specifications

Model – FHD320JZ-2-ICR-S6

Image Device – 1/2.8″ 2.0MP Sony CMOS
Horizontal Resolution – 2.0M/1080P
Effective Pixels – 1920(H)×1080(V)
Electronic Shutter – 1/25s~1/50,000s
Image System – PAL/ NTSC
Synchronization – Internal
Mini. Illumination – 0.01Lux(F1.2,AGC ON),0 Lux with IR ON
Max. IR LEDs Length – 2pcs Array Leds , 20M, Smart IR
Day/Night – IR Cut Filter Auto Switch
Lens Type – Fixed 3.6 MM
Video Output – 1CH HD_AHD/TVI/CVI/960H output

OSD Menu – UTC , External OSD Joystick (Optional)
Noise Reduction – 2D_DNR
BLC – Auto

Transmission Distance – Over 500m via 75-3 coaxial cable
Waterproof – IP66
Working Temperature – -10℃~50℃
Working Humidity – 10%~90%
Power Consumption – 300 mA
Power Supply – DC12V±10%
