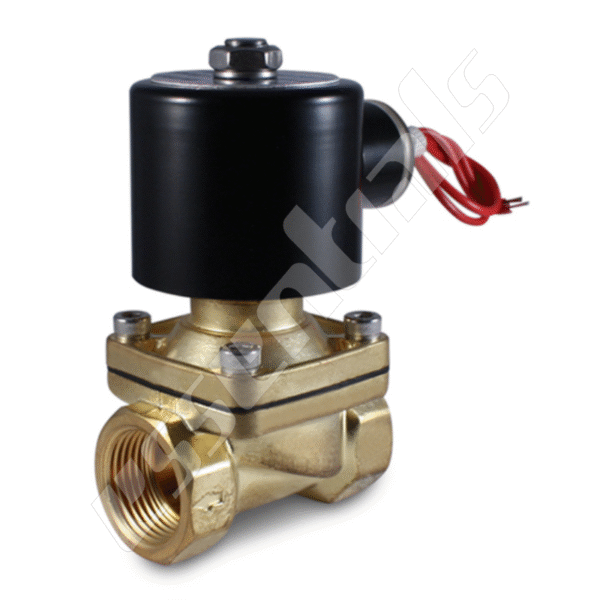

Solenoid Valve (12V) TKSV0022

5,000.00

Soleniod Valve (12V) 2-way normally closed solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This industrial solenoid valve has one 1-1/2″ inch NPT inlet and one 1-1/2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2BCW series valve is a zero differential valve which can be operated at 0 PSI (Vacuum) and it can be mounted in any position. 2BCW Series industrial solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.

SKU: TKSV0022 Category: Tag:

Technical Specifications

* Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
*Pressure: Normally Closed 8bar; Normally Open 6bar
*Function type: Normally Closed (N/C), Normally Open (N/O)
*Temperature: -5 ÷ 80C
*Mode of action: Semi-direct lift type
*Body material: Brass
*Sealing material: NBR
*Protection class: IP65

Application

Product Video
