• 8-channel infrared remote control learning function
• Source code quickly learn other remote control via infrared remote control of the device
• Windows multimedia control keys the (GOOGLE TV hotkey)
• Wireless audio and online voice dialogue

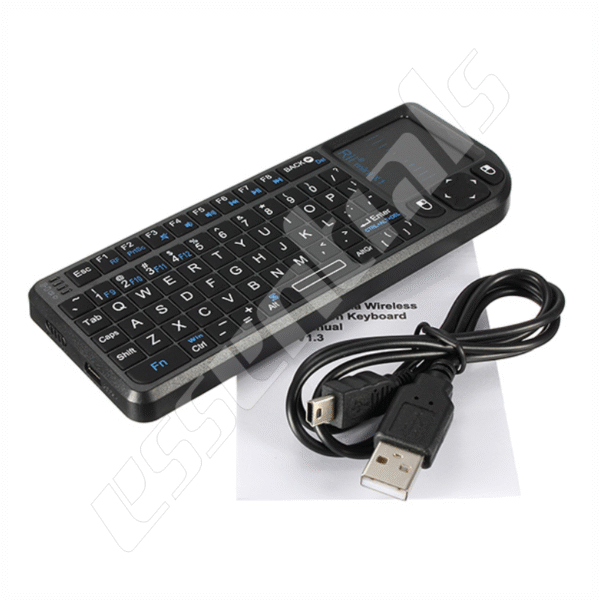

Multi-Function Wireless Pad (Keyboard, Mouse, Remote Control & Audio Chat) CEKP084
₦34,500.00
Mini Multifunction Keyboard! , Wireless Mini QWERTY Keyboard & Air Mouse & IR remote & Audio chat Combo, with USB interface receiver. And Built-in advanced lithium-ion battery, energy-efficient
You can use it for emails, chat, or to enjoy your favorite games. It is compatible with HTPC,TV BOX running Android systems. It also supports the Sony Playstation3.
Use it with your HTPC on your Sofa or browse the internet in the most comfortable fashion.
This is also a universal infrared remote controller with learning function. The remote control has a powerful ability to identify unknown format with a wide and reliable range of learning formats which means about 99.9% TV Infrared remote control on the market can be learnt .After learning the signars can be transmitted with high precision with a wide learning range (20kHz-60kHz) and a small frequency error(±1 kHz).
Package contents
Multifunction Keyboard
USB Wireless Receiver
User Manual
USB cnarqe cable
Technical Specifications
Technical parameters – Specification
Dimensions keyboard: 156*49.S*10mm
Dimensions RF receiver: 19 x 14.3 x 6.15mm
Function parameters (wireless keyboard and air mouse)
Frequency range: 2401•24BOMHz
Operational Range: up to 10 meters
Transmit power: +4db Max.
Operation voltage: 3.3V
Operation current: < SOmA
Charging current: e: 300mA
Sleep current: < SO~A
Function parameters (IR remote)
Rated voltaqe: DC 3V
Voltage range: 2.3V-3.6V
Operation current <20mA
Sleep current: <2j.lA
Ambient temperature: O•C"'+70•C
Storage temperature: -6S"C"'+1S0'C
Operational Range: up to 8 meters
Low-voltage (2.SV) condition's Infrared Emission
Distance: >6M
Application
Applicable equipment list
HID compatible device
USB port
Windows 2000
Windows XP
Windows Vista ,Windows CE, Windows 7
Linux(Debian•3.1 ,Redhat-9.0 uoumu-s.i 0
Fedora-7.0 tested)
Android OS (With standard USB interface)
HD Player,TV set
Set-Top BOX ,DVDNCD/CD equipment.
Air Conditioning Remote Control.
